ZERO-PROFILE DEVICE IMPLANTATION IN ANTERIOR CERVICAL DISCECTOMY AND FUSION: A SINGLE INSTITUTE EXPERIENCE

  • Nattawut Niljianskul Division of Neurosurgery, Department of Surgery, Faculty of Medicine, Vajira Hospital, Navamindradhiraj University, Dusit, Bangkok 10300, Thailand
Keywords: Alignment, Anterior cervical discectomy and fusion, Zero-profile device

Abstract

Background: A surgical procedure, anterior cervical discectomy and fusion (ACDF), is used for neural decompression in degenerative cervical disk disease and cervical spondylosis. A new type of cervical interbody cage, the Zero-profile device (ZPD), has been developed which could reduce postoperative complications among patients.

Objectives: The study aimed to examine the effect of ZPD on clinical outcomes and cervical spine alignment of enrolled patients at 1-year follow-up in the management of ADCF.

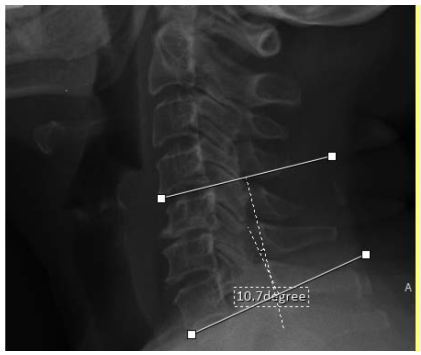

Methods: This study retrospectively evaluated the clinical and radiographic outcomes using the Zero-profile device (ZPD) in the anterior cervical discectomy and fusion (ACDF). All patients who underwent ACDF at Vajira Hospital between May 2017 and June 2021 were included in this study. Radiographic images obtained from picture archiving and communication systems (PACS) were used to evaluate the device-level Cobb angle (DLCA), segmental Cobb angle (SCA), global Cobb angle (GCA), sagittal vertical axis (SVA), and intervertebral disk height. The Japanese Orthopaedic Association (JOA) scores and visual analog scale (VAS) were obtained from the patients’ medical records. The preoperative DLCA, SCA, GCA, SVA, and intervertebral disk height measurements were compared with the postoperative measurements at 1 year.

Results: A total of 31 patients (45 disks) who underwent ACDF with the ZPD were included in this study. A significant improvement was found in JOA, VAS, DLCA, SCA, GCA, SVA, and intervertebral disk height after ACDF with ZPD (p<0.001). Immediate postoperative dysphagia occurred in two patients (6.5%), which resolved after 3 months. No subsidence was reported at 1-year follow-up. Age, BMI as well as the preoperative cervical alignment did not affect outcomes in this study.

Conclusion: The use of the ZPD in ACDF improved clinical and radiographic outcomes in the correction of cervical spine alignment, and minimized postoperative complications of dysphagia. No device-related failure occurred, and favorable outcomes persisted at 1-year follow-up.

Downloads

Download data is not yet available.

References

Boakye M, Mummaneni PV, Garrett M, Rodts G, Haid R. Anterior cervical discectomy and fusion involving a polyetheretherketone spacer and bone morphogenetic protein. J Neurosurg Spine 2005; 2: 521-5. DOI: https://doi.org/10.3171/spi.2005.2.5.0521

Vanek P, Bradac O, Delacy P, Lacman J, Benes V. Anterior interbody fusion of the cervical spine with Zero-P spacer: prospective comparative study-clinical and radiological results at a minimum 2 years after surgery. Spine (Phila Pa 1976) 2013; 38: E792-7. DOI: https://doi.org/10.1097/BRS.0b013e3182913400

Farley CW, Curt BA, Pettigrew DB, Holtz JR, Dollin N, Kuntz C 4th. Spinal cord intramedullary pressure in thoracic kyphotic deformity: a cadaveric study. Spine (Phila Pa 1976) 2012; 37: E224-30. DOI: https://doi.org/10.1097/BRS.0b013e31822dd69b

Shimizu K, Nakamura M, Nishikawa Y, Hijikata S, Chiba K, Toyama Y. Spinal kyphosis causes demyelination and neuronal loss in the spinal cord: a new model of kyphotic deformity using juvenile Japanese small game fowls. Spine (Phila Pa 1976) 2005; 30: 2388-92. DOI: https://doi.org/10.1097/01.brs.0000184378.67465.5c

Cabraja M, Abbushi A, Kroppenstedt S, Woiciechowsky C. Cages with fixation wings versus cages plus plating for cervical reconstruction after corpectomy-is there any difference? Cent Eur Neurosurg 2010; 71: 59–63. DOI: https://doi.org/10.1055/s-0029-1246135

Koeppen D, Piepenbrock C, Kroppenstedt S, Čabraja M. The influence of sagittal profile alteration and final lordosis on the clinical outcome of cervical spondylotic myelopathy. A Delta-Omega-analysis. PLoS One 2017; 12: e0174527. DOI: https://doi.org/10.1371/journal.pone.0174527

Gercek E, Arlet V, Delisle J, Marchesi D. Subsidence of stand-alone cervical cages in anterior interbody fusion: warning. Eur Spine J 2003; 12: 513–6. DOI: https://doi.org/10.1007/s00586-003-0539-6

Bazaz R, Lee MJ, Yoo JU. Incidence of dysphagia after anterior cervical spine surgery: a prospective study. Spine (Phila Pa 1976) 2002; 27: 2453–8. DOI: https://doi.org/10.1097/00007632-200211150-00007

Stein MI, Nayak AN, Gaskins RB 3rd, Cabezas AF, Santoni BG, Castellvi AE. Biomechanics of an integrated interbody device versus ACDF anterior locking plate in a single-level cervical spine fusion construct. Spine J 2014; 14: 128-36. DOI: https://doi.org/10.1016/j.spinee.2013.06.088

Scholz M, Schleicher P, Pabst S, Kandziora F. A zero-profile anchored spacer in multilevel cervical anterior interbody fusion: biomechanical comparison to established fixation techniques. Spine (Phila Pa 1976) 2015 1;40: E375-80. DOI: https://doi.org/10.1097/BRS.0000000000000768

Nemoto O, Kitada A, Naitou S, Tachibana A, Ito Y, Fujikawa A. Stand-alone anchored cage versus cage with plating for single-level anterior cervical discectomy and fusion: a prospective, randomized, controlled study with a 2-year follow-up. Eur J Orthop Surg Traumatol 2015; 25(Suppl 1): S127-34. DOI: https://doi.org/10.1007/s00590-014-1547-4

Barbagallo GM, Romano D, Certo F, Milone P, Albanese V. Zero-P: a new zero-profile cage-plate device for single and multilevel ACDF. A single institution series with four years maximum follow-up and review of the literature on zero-profile devices. Eur Spine J 2013; 22 (Suppl 6): S868-78. DOI: https://doi.org/10.1007/s00586-013-3005-0

Sun Z, Liu Z, Hu W, Yang Y, Xiao X, Wang X. Zero-profile versus cage and plate in anterior cervical discectomy and fusion with a minimum 2 years of follow-up: A meta-analysis. World Neurosurg 2018; 120: e551-61. DOI: https://doi.org/10.1016/j.wneu.2018.08.128

Song KJ, Yoon SJ, Lee KB. Three- and four-level anterior cervical discectomy and fusion with a PEEK cage and plate construct. Eur Spine J 2012; 21: 2492-7. DOI: https://doi.org/10.1007/s00586-012-2447-0

Xiao SW, Jiang H, Yang LJ, Xiao ZM. Anterior cervical discectomy versus corpectomy for multilevel cervical spondylotic myelopathy: a meta-analysis. Eur Spine J 2015; 24: 31-9. DOI: https://doi.org/10.1007/s00586-014-3607-1

Song KJ, Taghavi CE, Hsu MS, Lee KB, Kim GH, Song JH. Plate augmentation in anterior cervical discectomy and fusion with cage for degenerative cervical spinal disorders. Eur Spine J 2010; 19: 1677-83. DOI: https://doi.org/10.1007/s00586-010-1283-3

Bose B. Anterior cervical fusion using Caspar plating: Analysis of results and review of the literature. Surg Neurol 1998; 49: 25-31. DOI: https://doi.org/10.1016/S0090-3019(97)00306-6

Stewart M, Johnston RA, Stewart I, et al. Swallowing performance following anterior cervical spine surgery. Br J Neurosurg 1995; 9: 605-9. DOI: https://doi.org/10.1080/02688699550040882

Winslow CP, Winslow TJ, Wax MK. Dysphonia and dysphagia following the anterior approach to the cervical spine. Arch Otolaryngol Head Surgery 2001; 127:51-5. DOI: https://doi.org/10.1001/archotol.127.1.51

Riley LH 3rd, Skolasky RL, Albert TJ, Vaccaro AR, Heller JG. Dysphagia after anterior cervical decompression and fusion: prevalence and risk factors from a longitudinal cohort study. Spine (Phila Pa 1976) 2005; 30: 2564-9. DOI: https://doi.org/10.1097/01.brs.0000186317.86379.02

Fountas KN, Kapsalaki EZ, Nikolakakos LG, Smisson HF, Johnston KW, Grigorian AA, et al.. Anterior cervical discectomy and fusion associated complications. Spine (Phila Pa 1976) 2007; 32: 2310-7. DOI: https://doi.org/10.1097/BRS.0b013e318154c57e

Di Capua J, Somani S, Kim JS, Phan K, Lee NJ, Kothari P, et al. Elderly age as a risk factor for 30-day postoperative outcomes following elective anterior cervical discectomy and fusion. Global Spine J 2017; 7: 425-31. DOI: https://doi.org/10.1177/2192568217699383

Omidi KF, Ghayem HE, Ghandehari R. Impact of age and duration of symptoms on surgical outcome of single-level microscopic anterior cervical discectomy and fusion in the patients with cervical spondylotic radiculopathy. Neurosci J 2014; 2014: 808596. DOI: https://doi.org/10.1155/2014/808596

Chotai S, Parker SL, Sielatycki JA, Sivaganesan A, Kay HF, Wick JB, et al. Impact of old age on patient-report outcomes and cost utility for anterior cervical discectomy and fusion surgery for degenerative spine disease. Eur Spine J 2017; 26: 1236–45. DOI: https://doi.org/10.1007/s00586-016-4835-3

Aekplakorn W, Mo-Suwan L. Prevalence of obesity in Thailand. Obes Rev 2009; 10: 589-92. DOI: https://doi.org/10.1111/j.1467-789X.2009.00626.x

Perez-Roman RJ, McCarthy D, Luther EM, Lugo-Pico JG, Leon-Correa R, Gaztanaga W, et al. Effects of body mass index on perioperative outcomes in patients undergoing anterior cervical discectomy and fusion surgery. Neurospine 2021; 18: 79-86. DOI: https://doi.org/10.14245/ns.2040236.118

Basques BA, Khan JM, Louie PK, Mormol J, Heidt S, Varthi A, et al. Obesity does not impact clinical outcome but affects cervical sagittal alignment and adjacent segment degeneration in short term follow-up after an anterior cervical decompression and fusion. Spine J 2019; 19: 1146-53. DOI: https://doi.org/10.1016/j.spinee.2019.02.016

Cabraja M, Oezdemir S, Koeppen D, Kroppenstedt S. Anterior cervical discectomy and fusion: comparison of titanium and polyetheretherketone cages. BMC Musculoskelet Disord 2012; 13: 172. DOI: https://doi.org/10.1186/1471-2474-13-172

Lee CH, Hyun SJ, Kim MJ, Yeom JS, Kim WH, Kim KJ, et al. Comparative analysis of 3 different construct systems for single-level anterior cervical discectomy and fusion: stand-alone cage, iliac graft plus plate augmentation, and cage plus plating. J Spinal Disord Tech 2013; 26: 112-8. DOI: https://doi.org/10.1097/BSD.0b013e318274148e

Scholz M, Schnake KJ, Pingel A, Hoffmann R, Kandziora F. A new zero-profile implant for stand-alone anterior cervical interbody fusion. Clin Orthop Relat Res 2011; 469: 666-73. DOI: https://doi.org/10.1007/s11999-010-1597-9
